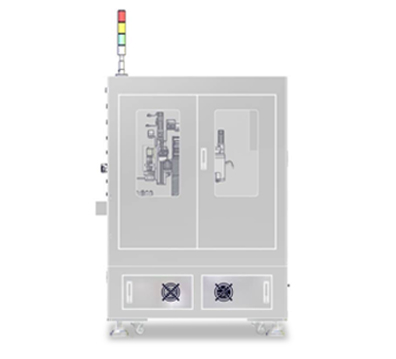

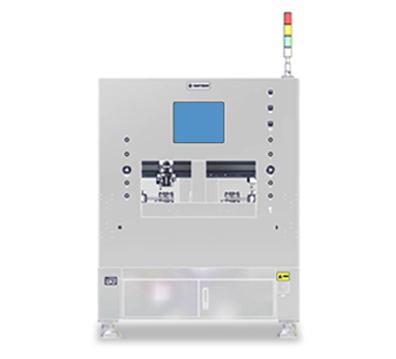

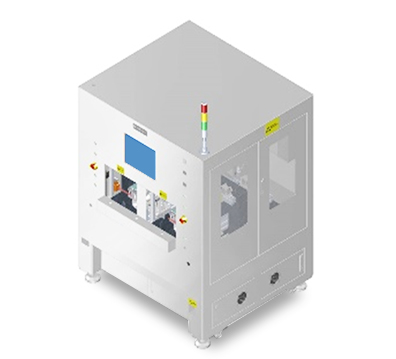

Mobile phone appearance inspection machine

Models: Testing machine
Function: Testing the mismatch and gap between the phone scr...
Advantage: 1.Stable and efficient inspection by using line laser measuring instrument, high precision camera, marble and high precision mechanism components; 2.Testing glass, metal and other materials with different light transmission, colors or material; 3.Mismatch and gap testing error within 8 per cent; ...
The equipment includes a line laser measuring instrument, a high precision camera, a marble gantry, a multi-dimensional rotating stage and other structures.
Equipment Dimension:1400mm*1300mm*1800mm
Equipment Weight:800KG
Rated Voltage:220V
Rated Power:7.5KVA
Gas Supply Pressure:0.5~0.7Mpa

1.Stable and efficient inspection by using line laser measuring instrument, high precision camera, marble and high precision mechanism components;

2.Testing glass, metal and other materials with different light transmission, colors or material;

3.Mismatch and gap testing error within 8 per cent;

4.Self-developed testing procedures

5.Curved surface and profile inspection


We can offer automated production lines through combineing this machine with other individual units freely according to customer requirements.
